Material Recovery Facility (MRF)
Overview
A Material Recovery Facility (MRF) is a modern plant designed for the segregation, sorting, and recovery of valuable recyclables from mixed municipal solid waste (MSW), dry waste, or pre-segregated waste streams. MRFs play a crucial role in the circular economy by diverting waste away from landfills, recovering reusable materials, and ensuring that only inert residues are disposed.
Types of MRFs
- Clean MRF
- Processes source-separated recyclables (plastics, metals, glass, paper, etc.) collected from households and institutions.
- Dirty MRF
- Processes mixed MSW to extract recyclables before sending organic fractions to composting or biomethanation and rejects to landfill.

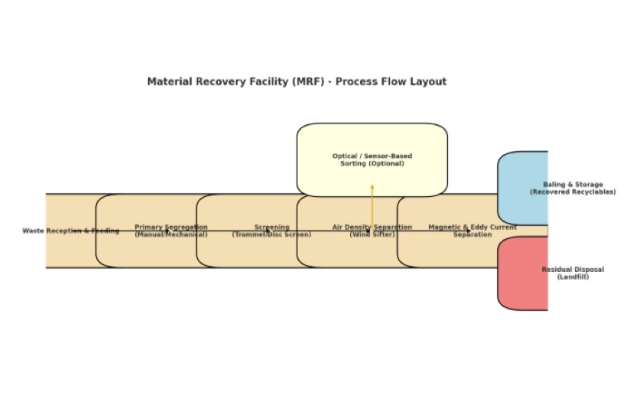

Process Flow
- Waste Reception & Feeding
- Waste is unloaded, inspected, and fed onto conveyors for uniform flow.
- Primary Segregation
- Manual or mechanical sorting to remove bulky items and hazardous contaminants.
- Screening (Trommel / Disc Screen)
- Separates waste into different size fractions for specialized processing
- Air Density Separation (ADS / Wind Sifter)
- Differentiates light fractions (plastics, paper) from heavy fractions (glass, stones, metals).
- Magnetic & Eddy Current Separation
- Ferrous and non-ferrous metals are recovered for recycling.
- Optical / Sensor-Based Sorting (Optional)
- High-tech systems to sort plastics (PET, HDPE, LDPE, etc.), paper grades, and other materials.
- Baling & Storage
- Recovered recyclables are compacted into bales for easy transportation to recycling industries.
- Residual Disposal
- Only minimal non-recyclable fraction is sent to landfill.
Key Features
Customizable Capacity
From 25 TPD (small towns) to 700 TPD (metropolitan cities).
Modular Design
Flexible to integrate Trommels, ADS, Magnetic Separators, Optical Sorters.
Efficient Resource Recovery
Maximizes recyclable extraction and minimizes landfill dependency.
Scalable & Automated
Can be manual, semi-automatic, or fully automated depending on budget and scale.
Compliant with SWM Rules, 2016
Supports ULBs in achieving waste management targets.
Application Area
Urban Local Body Waste Management
Dry Waste Collection Centers
Smart Cities & Large Housing Complexes
Integration with Biomining and Fresh Waste Treatment Facilities
Benefits
Diverts waste from landfills and reduces environmental burden.
Recovers valuable recyclables (plastics, paper, metals, glass).
Supports circular economy and sustainability goals
Generates revenue through sale of recovered materials.
Creates local employment opportunities.
